Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel

China Guangzhou Jiuying Food Machinery Co.,Ltd certification
China Guangzhou Jiuying Food Machinery Co.,Ltd certification
I'm Online Chat Now

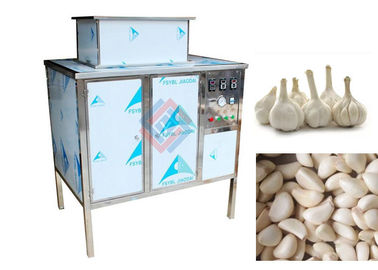

Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel

Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel
Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel

Large Image :  Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel

Product Details:
Place of Origin: GuangDong,China
Brand Name: JiuYing
Certification: CE
Model Number: JY-128-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 3~15days after receive the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000pcs/m
Detailed Product Description
Unit Size: 920*740*1450mm Capacity: 200~300KG/H
Material: SUS 304 Stainless Steel Power: 0.6~3KW
N.W.:: 220KG G.W.:: 240KG
Item Name: Garlic Skin Remove Machine Qty Of Tanks: 2pcs
Highlight:

garlic processing equipment

,

garlic processing plant



Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel



Working Principle

This product takes the Pneumatic principle, through the air compressor to provide high pressure peeled garlic.
For better effects,air pressure from air compressor need to be 0.8-0.9Mpa,air flow 2 m³/min. air compressed from the air compressor was transported into the garlic peeling machine through the national standard exhaust pipe. measured by a independent barometer, ensured the peeled garlic can not be damaged by the air pressure during the processing.



Working Process

Garlic peeling machine is controlled by the feeding,peeling and Discharge three switches. the Moisture content of garlic need to be peeled better controlled at 35%-45%. feeding time should adjust into 3s-5s through the feeding switch; peeling switch adjusted into 5s-8s, discharge switch adjusted into 3s-5s after starting the air compressor, put garlic into the inlet, adjust the time controlled by the three switches ,when the air pressure get 0.8-0.9Mpa, air flow comes up to 1.06m³/min, then turn on the garlic peeling machine, this machine will peel garlic automatically without any hurt to the garlic.





Features



1. It adopts a special design for peeling. During the peeling process, the garlic doesn’t go through the blade or friction to make sure the integrity, freshness and cleanness.

2. It has the functions of drying, automatically peeling, energy-saving, high output and easy to clean.

3. An automatic feeding device is set on the machine to separate the garlic kernel and the garlic skin.

4. The machine conforms to the hygienic standard and it is low in damage. After peeling, the garlic kernel can be store for several days.





Specification



Model JY-128-2
Dimension 920*740*1450mm
Packing Size 1020*840*1650mm
Capacity 200~300kg/h
Material SUS 304 Stainless Steel









Application



Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel 0



Double Tanks Garlic Skin Remove Machine With 304 Stainless Steel 1





FOR MORE DETAILS,WELCOME TO CONTACT US!
