Powerful Double - Line Sausage Tying Machine With Advanced Control System

China Guangzhou Jiuying Food Machinery Co.,Ltd certification
China Guangzhou Jiuying Food Machinery Co.,Ltd certification
I'm Online Chat Now

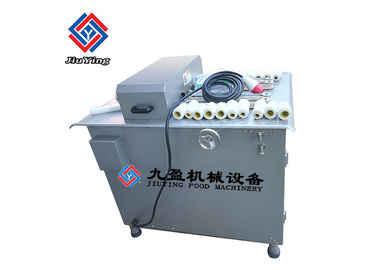

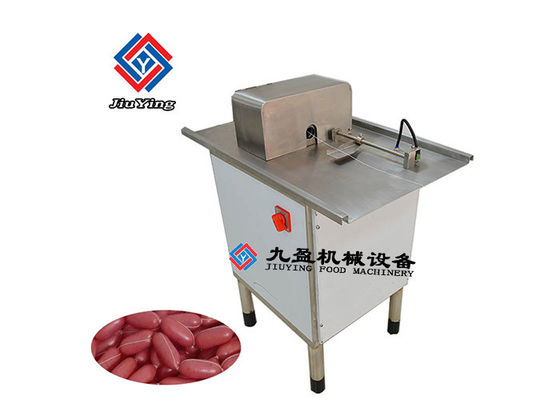

Powerful Double - Line Sausage Tying Machine With Advanced Control System

Powerful Double - Line Sausage Tying Machine With Advanced Control System
Powerful Double - Line Sausage Tying Machine With Advanced Control System Powerful Double - Line Sausage Tying Machine With Advanced Control System

Large Image :  Powerful Double - Line Sausage Tying Machine With Advanced Control System

Product Details:
Place of Origin: GuangZhou,China
Brand Name: JiuYing
Certification: CE
Model Number: TJZG-3
Payment & Shipping Terms:
Minimum Order Quantity: I unit
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 3~15 days after receive the deposit
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/month
Detailed Product Description
Type: Sausage Tying Machine Item Model: TJZG-3
Dimension: 1352*760*1352mm Sausage Diameter: 9-40mm
Sausage Length Range: 20-400(adjustable) Color: 304 Stainless Steel Color
High Light:

sausage making machine

,

sausage production equipment

Powerful TJZG-3 Double-Line Sausage Tying Machine With Advanced Control System





Description



TJZG-3 is a fully automatic double sausage tying machine, which adopts high performance servo motor and automatic control system. The whole machine is made of stainless steel. It has the advantages of small size, high efficiency, easy operation, low energy consumption and saving production materials. The length of products can be adjusted continuously according to the needs of customers. The mature design structure and the stability of the equipment make your production worry-free. Our products are the best choice for small and medium sized food enterprises.



Main Functions And Features:

  • The biggest advantage of the equipment is to save casing. The tying mouth uses winding mode, which makes the tying line firm and the production product beautiful and graceful.
  • All the structural parts of the machine are made of high-quality 304 stainless steel materials, beautiful, sanitary and easy to clean.
  • This equipment adopts servo motor to drive with high precision and production efficiency: the highest speed can reach 800 knots/min.
  • This equipment adopts advanced motion control system, with high working efficiency, stable control and good tying effect.
  • This equipment can produce products with the diameter of the coliform of No.28, and can adjust the product length according to the customer’s demand, so that the products can be flexible and changeful, and can better adapt to the market demand.



Technical Parameters



Working voltage three-phase: 380V or 220V

Production capacity 800 knots per minute
Suitable for intestinal body diameter: 9-28mm

Dimensions: 1075*780*1300mm

Weight: 280KG



Specification

Model TJZG-3
Unit Size 1075*780*1300mm
Packing Size 1250*800*1480mm
Material SUS 304 Stainless Steel
Sausage Diameter 9-28mm
Sausage Length Range 20-400(adjustable)
Capacity Approx 3600pcs/h
Net Weight 280KG



Powerful Double - Line Sausage Tying Machine With Advanced Control System 0



Our packaging and shipping



1. Pacaking

All machines which need pacaged will be covered by film then put into the export standard wooden case, use the cystosepiment to prent breaking on ship.



The wooden case will be fixed inside the container tightly by the rope.

Export standard wooden case will be palleted for easy unloading for customers.



2. Shippping
We select the direct ship for sending the machines to customers within shortest time as we can. And all main BL for ensuring the safety of the machines.



We update the shipping information to customer in time.
