Guangzhou Jiuying Food Machinery Co.,Ltd
Home ProductsMeat Dicer Machine

800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function

China Guangzhou Jiuying Food Machinery Co.,Ltd certification
China Guangzhou Jiuying Food Machinery Co.,Ltd certification
I'm Online Chat Now

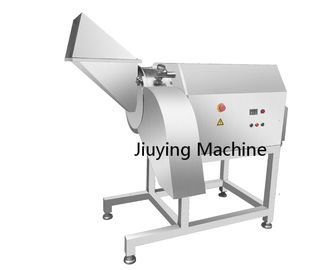

800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function

800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function
800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function 800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function 800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function 800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function

Large Image :  800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function

Product Details:
Place of Origin: Guangzhou, China
Brand Name: JiuYing
Certification: CE
Model Number: TJ-1500R
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 3~15 working days after receive the payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20pcs/month
Detailed Product Description
Name: Automatic Frozen Meat Dicer Machine Output: 800~1500KG/H
Power:: 5.5KW Materail: SUS 304 Stainless Steel
Weight: 550KG Model: TJ-1500R
Type: Dicer Inlet Size: 405*275mm
Highlight:

Automatic Frozen Meat Dicer Machine

,

3 Dimension Frozen Meat Dicer Machine

800~1500KG/H Automatic Frozen Meat Dicer Machine with 3 Dimension Cutting Function


Product Description


Introduction:



This machine is suitable for cutting frozen pork, frozen chicken (without bone) and the same type of frozen meat from minus 5 to minus 10 degrees Celsius. It can cut 3-15mm square cubes and 3-17mm square strips in various directions to meet customer needs.



Machine Features:

1, Easy to clean and replace the knife disc, easy to operate.

2. Cutting speed can be adjusted by electric control panel.





Application:

Suitable for those fresh or frozen meat processing factory, supermarket, central kitchen, chain restaurant, ect



Note:

It can be connected to the next processing step like vacuum packing.



Service:
1.Before sending the machine, we will test and adjust, so you can use directly when you get it.
2.Operating video & instruction will be sent to clients, to help them better use the machines.
3.Any problems occur while using, professional advice will be given by us.
4.All kinds of frequently used parts are supplied from us all the year round.





Dimension of Dicer Machine:



Model JY-350 JY-550 TJ-1500R
Capacity(kg/h) 500~600 700~900 800~1500
Power (kw) 3.2kw 3.7kw 5.5kw
Weight (kg) 300kg 500kg 600kg
Overall size 1480*800*980mm 1940*980*1100mm 1640*900*1500mm
Cutting slot size 84*84*350mm 350*120*120mm 405*275mm
Voltage(v) 380V 380V 380V

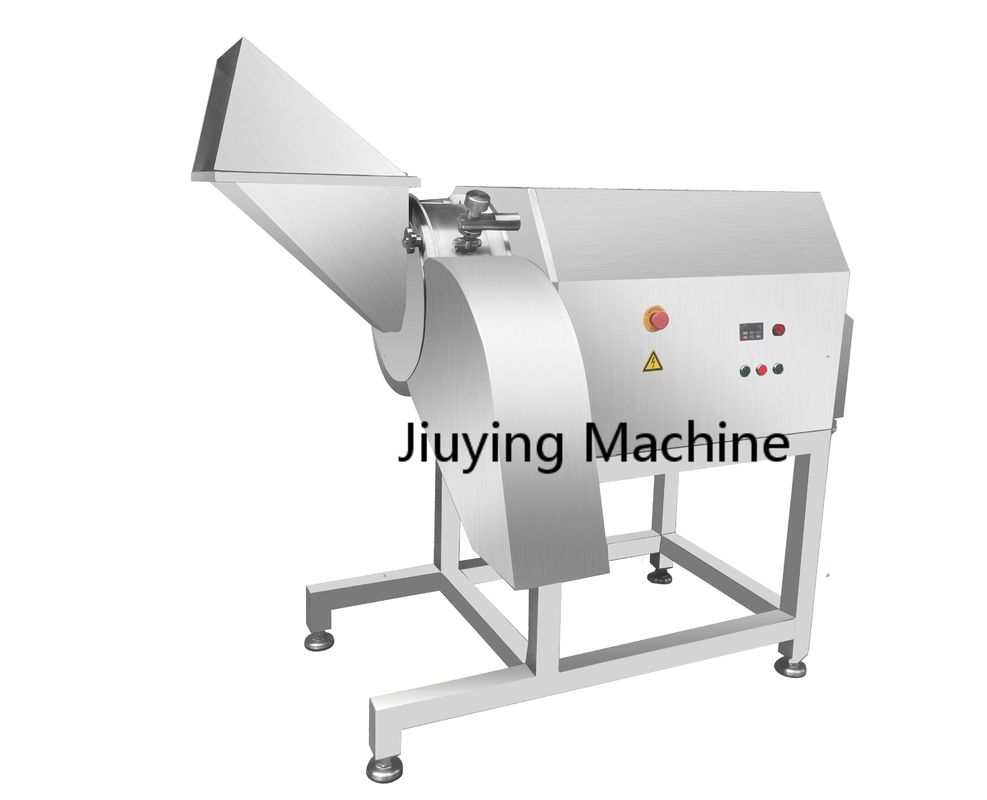

AS FOLLOWS: THE MACHINE MAIN ANALYSIS DIAGRAM.



Notice:the meat temperature above -10℃ will get the best effect.

800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function 0

RAW MATERIAL RENDERING.

800~1500KG/H Automatic Frozen Meat Dicer Machine With 3 Dimension Cutting Function 1



Specification

Model TJ-1500R Meat dicing machine
Unit Size 1640*900*1500mm
Packing Size 1740*1000*1700mm
Inlet Size 405*275mm
Capacity 800~1500KG/H
Power 5.5KW
Dicing Size 3~15mm Adjustable
Material SUS 304 Stainless steel
Net Weight 600KG







Packaging & Shipping
MOQ 1 set
Payment Terms T/T, L/C
Packaging Standard export packaging by wooden case
Loading Port Guangzhou or Shenzhen
Delivery Time Within 3-5 days
Shipping Terms By Sea, By Express, By Air
