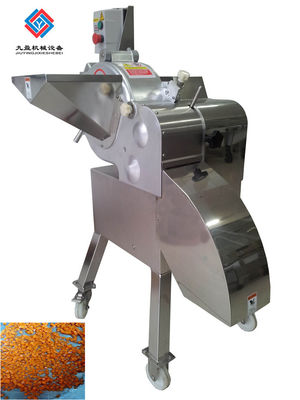

Potato Carrot Vegetable Cube Cutting Machine Capacity 500~800kg/H

Vegetable & Fruit Dicing Machine TJ-800

Potato Carrot Vegetable Cube Dicing Cutting Machine Capacity 500~800kg/h

2. This machine can cut vegetable&fruit into different size cube after changing the different knife.The machine is equipped with 2 set knives.You can choose them from different size.

3. The machine can cut different vegetable and fruit into cube, such as potato, sweet potato, carrot, onion, mango, apple, pineapple,etc.
4. Machine is equipped with four wheels, easy to move. You can use it everywhere after power connection.

5. This dicing machine is widely used in farm, food processing factory, restaurant and so on.

Structural Features And Working Principle

1. Structural features The machine mainly consists of base, housing, dial, vertical knife, wire cutter body, cross cutter body, transmission system and electrical control system. The machine base, casing, hopper and main components are made of stainless steel to ensure long-term work without rust, non-toxic and other characteristics.

2. Working principle The dial of the machine drives the object to be cut to rotate at a high speed. Using the centrifugal force of the object, the object to be cut is cut into pieces by means of a vertical knife, and then cut into strips by a disc cutter, and the material to be cut is sent into the horizontal direction. Cut the knife edge and cut it into the desired cube or cuboid by a cross cutter.

Cutting blades

Finished pictures

Technical Parameter
Capacity: 500-800kg/ h
Dimension: 700L×800W×1300(H)

Cutting size: 3-20mm (not adjustable, can be customized)
Net weight: 100KG
Voltage: 220V/ 380V
