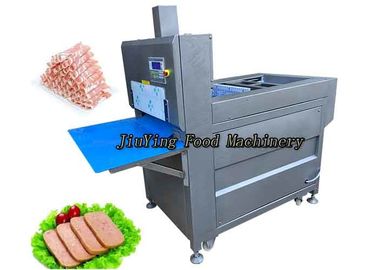

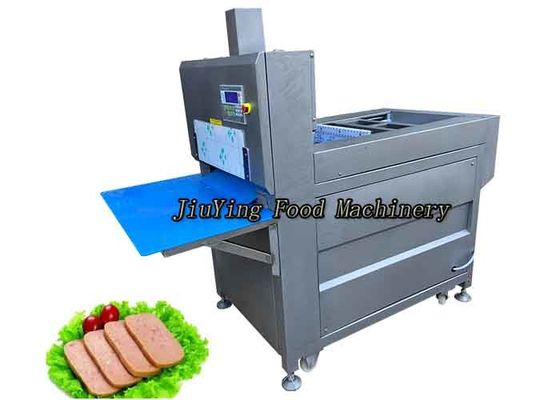

Industrial Frozen Meat Slicing Machine Mutton Rolls Slicer Tempreture -5ºC∼35ºC

Industrial Frozen Meat Slicing Machine Beef Mutton Rolls Slicer

The introduction of Mutton Rolls Meat Slicer

1. High efficiency, 120 slices per minute

2. Double - directional propulsion system ensures even slicing.

3. Fully automatic operation, saving labor cost

4. it Can cut thick roll, thin roll, long roll, straight piece and other types of roll, one machine for many purposes

5. Meat rolls at minus 18 degrees Celsius can be sliced without defrosting. The meat pieces are not broken, and the shape is neat and beautiful

6. The cutting parts are easy to clean and can be disassembled and installed without tools.

7. No need to sharpen the knife, the unique design saves the trouble of sharpening the knife and reduces the use cost.

Input power: three-phase AC380V + N (or single-phase AC220V) 50Hz

working environment:
a) Temperature: -5ºC∼35ºC
b) Humidity: less than 80 ﹪ (no condensation)
c) Vibration: less than 0.5g (4.9m / s), 10∼60HZ (discontinuous operation)
d) Non-corrosive, explosive and flammable, conductive gas, liquid, and dust
Dimensions:
Two volumes: 1300mm × 500mm × 1260mm
Four rolls: 1300mm × 760mm × 1260mm
Eight volumes: 1800mm × 1200mm × 1300mm
Processing range:
Meat roll temperature (winter) -8-10 ℃ (summer) -12-15 ℃ is the best)
Two rolls: length 600mm, diameter 80-125mm (or height ≤170mm)
Four rolls: length 600mm, diameter 80-125mm (or height ≤170mm)
Eight rolls: length 800mm, diameter 80-125mm (or height ≤170mm)
Weight:
Two volumes: 350kg
Four rolls: 500kg
Eight rolls: 800kg

Notice:

1. Our company's slicer 16 rolls, 8 rolls, 4 rolls, 2 rolls, automatic flat cuts, 2 rolls, 1 roll are available for sale, double layer overlay cutting, touch screen operation, PLC control, servo motor drive, double screw horizontally Material, cutting height up to 20 cm, fully automatic operation,
2. Suitable for large, medium and small meat processing enterprises. This product adopts electric pusher, electric presser, electric adjustment thickness, stepping pusher, meat processing, cutter automatically stops, pusher plate automatically retreats, automatic stop, cutter open conveyor automatic synchronous operation, protective door open The whole machine is automatically powered off, the degree of automation is high, the meat slice is cut, the thickness is adjusted, the meat roll is delivered, and the meat is automatically stopped. It can be completed with one button, saving labor and time.
