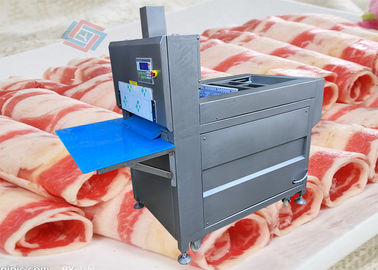

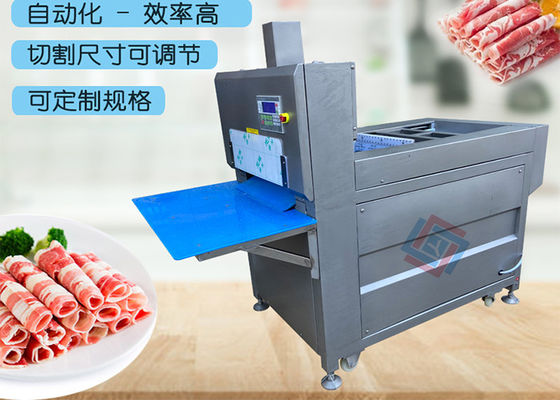

304 Stainless Steel Meat Beef Mutton Slicer Cutting Processing Machine

304 Stainless Steel Meat Beef Mutton Slicer Cutting Processing Machine

MOQ: one set
Standard Packaging: Standard Export package By Wooden case
Delivery Period: 3days
Payment Method: L/C, T/T
Supply Capacity: 10 sets per week
Detail Information
Place of Origin
Guangzhou,China
Brand Name
Jiu Ying
Certification
CE
Model Number
JYR-4L
Voltage:
220v/380v
Power:
2.25KW
Warranty:
12 Months
Dimension:
1300mm×760mm×1260mm
Output:
500KG/H
Material:
304 Stainless Steel
Highlight:

meat manufacturing equipment

,

meat processing plant equipment

Product Description



Adjustable 2L 4L Beef Slicing Mutton slicer Meat Processing Machine



The CNC slicer is independently developed by our company. It is mainly controlled by a well-known domestic brand PLC. The feed adopts the most reliable hybrid stepper motor and servo motor. The whole machine has a high degree of automation and a thick and thin meat roll. The thickness is uniform and it advances and retreats automatically. . The whole machine is welded and processed from food-grade 304 stainless steel, with more stable mechanical properties. High integration, small size, fast response speed, complete protection, high reliability, long life cycle, low maintenance rate, etc Suitable for frozen beef and mutton, seafood and many other fields.


Advantages of the slicer
a) High degree of automation. Adjust the thickness without stopping, one-button operation of forward and backward, and automatic back function. Really realizes one-touch operation of numerical control in a real sense.
b) High cutting efficiency. The slicing speed of the CNC microtome is 50 times / minute, and the slicing speed of the mechanical microtome is 36 times / minute, which is 30% more efficient than the mechanical microtome.
c) The whole machine is made of food grade 304 stainless steel, and the pusher adopts double guide feed. The machine runs more stably and the slice thickness is consistent.
d) The starting height is larger, suitable for cutting beef and lamb rolls (plates) of various heights.

technical parameter
Input power: three-phase AC380V + N (or single-phase AC220V) 15 ~ + 10 ﹪ 50HZ
Working environment: a) Temperature: -5ºC∼35ºC Storage: -20 ℃ ∼35 ℃

b) Humidity: less than 80 ﹪ (no condensation)

c) Vibration: less than 0.5g (4.9m / s), 10 ~ 60HZ (discontinuous operation)

d) Non-corrosive, explosive and flammable, conductive gas, liquid, and dust

Appearance size: two volumes: 1300mm × 500mm × 1260mm

Four rolls: 1300mm × 760mm × 1260mm

Eight volumes: 1800mm × 1200mm × 1300mm

Processing range: meat roll temperature (winter) -8-10 ℃ (summer) -12-15 ℃ is the best)

Two rolls: length 600mm, diameter 80-125mm (or height ≤170mm)

Four rolls: length 600mm, diameter 80-125mm (or height ≤170mm)

Eight rolls: length 800mm, diameter 80-125mm (or height ≤170mm)

Weight: Two rolls: 350kg

Four rolls: 500kg

Eight rolls: 800kg

304 Stainless Steel Meat Beef Mutton Slicer Cutting Processing Machine 0


304 Stainless Steel Meat Beef Mutton Slicer Cutting Processing Machine 1




FAQ



1. Q: How is The Quality Of The Products?
A: With the goal of becoming the leading brand in this filed, we keep exploring in research,quality development for the past 15 years. We are confident to satisfy you with our guaranteed quality.
2. Q: How to Operate And Install The Machinery?
A: Manuals will be provided together with machinery;and we usually assemble the machinery and test it before shipment.
3.Q: What is The Solution For Faults During The Use Of The Machinery?
A: You shall send us the details of the machinery and the failure statements with a photo or a video if necessary,Then we will offer you the professional instructions and suggestions until the machinery works normally.
4. Q: What Details Are Important Before Ordering The Processing Line?
A: The processing materials, capacity requirements,ichnography of your plant,and also your kind customized requirements shall be provided to us before making accurate plans for you.

5. Q: What Kind Of Payment Terms Are Available?
A: T/T, L/C,WESTERN UNION are acceptable.
