Product Details:
Payment & Shipping Terms:
|

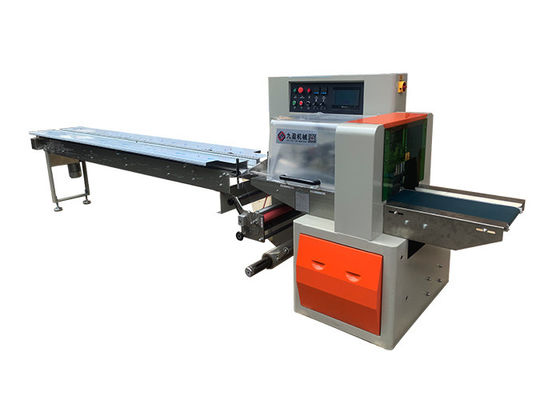

| Item Name: | Vegetables Packing Machine | Unit Size: | 4020*920*1450mm |
|---|---|---|---|
| Film Width: | Max. 600mm | Bag Length: | 130-450mm |
| Bag Width: | 60-280mm | Product Height: | Max.95mm |
| Film Roll: | Max. 320mm | Packaging Rate: | 30-150 Bag/min |
| Power: | 220V,50/60HZ,2.6KVA | ||
| High Light: | Leafy Vegetables Packing Machine,PID Vegetables Packing Machine,150bag/min vacuum pouch packing machine |
||
Features:
1. The touch screen operation is intuitive and easy to understand, and the Chinese and English operation interface.
2. The equipment adopts servo control system, the product transmission and packaging sealing is controlled by double servo drive and frequency converter, and the stability is good.
2. The electric eye automatically recognizes the length of the material to make bags and cut bags. The length and length of the products can be packaged at the same time without adjustment. .
3. No film when no material is produced, no empty package will be produced, and packaging materials will be saved.
4. The machine has the function of saving records. When the packaged product is replaced, it can be directly produced by normal switching.
5. It will recognize the length and length of various vegetables, and will not empty the bag when there is no vegetable supply.
6. The machine transmission structure is simple and easy to operate.
7. separate temperature PID temperature regulator, better to adapt to a variety of packaging materials.
Application: This machine is suitable for automatic packaging of spinach, lettuce, leeks, Chinese cabbage, Shanghai green, Chinese cabbage, Chinese cabbage, beans, green onions, celery, and other vegetables.
Specification
| Type | JY-450X | JY-600X | |
| Film width | Max. 450mm | Max. 600mm | |
| Bag length | 130-450mm | 130-450mm | |
| Bag width | 60-200mm | 60-280mm | |
| Product height | Max.80mm | Max.95mm | |
| Film roll | Max. 320mm | ||
| Packaging rate | 30-180 bag/min | 30-150 bag/min | |
| Power | 220V,50/60HZ,2.8KVA | ||
| Machine size | (L)4020X(W)820X(H)1450mm | (L)4020X(W)920X(H)1450mm | |
| Net Weight | 800kg | 900kg | |
| Remarks | Optional Air filling device | ||
Related Machine:
Washing machine
Cutting machine
