Product Details:
Payment & Shipping Terms:
|
Machine Characteristics: | Two-dimensional Centrifugal | Cutting Size: | 2-4mm |
---|---|---|---|
Power: | 1500w | Regular Voltage: | 400 V, 50 Hz, 3 Phase |
Weight: | 350kg | Dimensions: | 1350mm*800mm *1510mm |
Highlight: | 4mm Fruit Processing Equipment,1500w Fruit Processing Equipment,3T Potato Slicer Carrot Shredder |

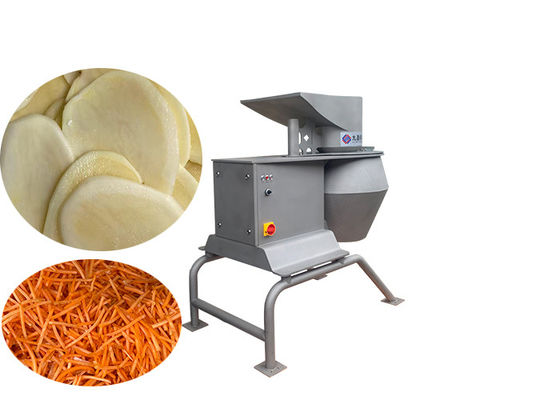

3T Capacity Fruit Processing Equipment Potato Slices Carrot Shredder Cutting Processing Machinery
The large-scale grater TJ-400T is a two-dimensional cutting machine, suitable for slicing, cutting (shredded), or cutting vegetables. It is suitable for cutting various root vegetables, fruits, meats and cheeses. For example, potatoes, carrots, lettuce, bamboo shoots, onions, tomatoes, almonds, mushrooms, radishes, garlic, etc., are suitable for cutting products of various specifications. The maximum diameter of the products to be cut is 90mm.
Machine characteristics
1. Two-dimensional centrifugal cutting machine: made of all stainless steel, heavy frame structure, sandblasted surface treatment
2. Concise design, no exposed nuts, smooth surface design, easy to clean
3. The drive area and the cutting area are completely separated, with high sanitary standards and convenient maintenance
4. Rotating feeding port, equipped with a safety switch, can be connected to a feeding machine
5. The circular discharge port can be adapted to the receiving box or discharge conveyor according to customer requirements
6. Equipped with stainless steel movable casters
7. The cutting tool imported from Germany is very sharp, no need to sharpen the knife, and the replacement cost is low.
Technical Parameters
Erasable wire: 2.4x2.4mm square wire, 3.2x3.2mm V-shaped wire
Can be cut: 4x4mm/5x5mm/6x6mm/7x7mm/8x8mm/9x9mm/10x10mm
Can be sliced: 1-5mm flat sheet and corrugated sheet, steplessly adjustable
Power supply: 400 V, 50 Hz, 3 phase
Power: 1.5 kW motor, equipped with Omron frequency conversion speed regulation, suitable for various products
Motor button start, with feed port indicator light and speed control knob
Dimensions: length 1350mm × width 800mm × height 1510mm
Weight: 350Kg
