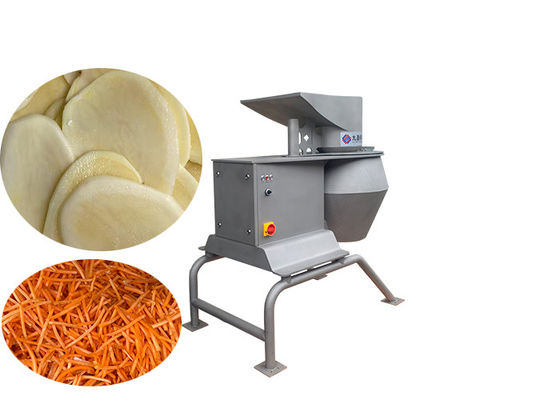

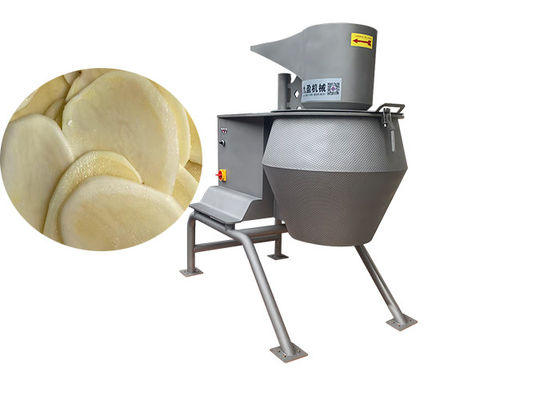

4x4mm Fruit Processing Equipment Carrot Grater Machine

China Guangzhou Jiuying Food Machinery Co.,Ltd certification
China Guangzhou Jiuying Food Machinery Co.,Ltd certification
I'm Online Chat Now

4x4mm Fruit Processing Equipment Carrot Grater Machine

4x4mm Fruit Processing Equipment Carrot Grater Machine
4x4mm Fruit Processing Equipment Carrot Grater Machine 4x4mm Fruit Processing Equipment Carrot Grater Machine 4x4mm Fruit Processing Equipment Carrot Grater Machine

Large Image :  4x4mm Fruit Processing Equipment Carrot Grater Machine

Product Details:
Place of Origin: Guangzhou,China
Brand Name: Jiu Ying
Certification: CE
Model Number: TJ-400T
Payment & Shipping Terms:
Minimum Order Quantity: one set
Packaging Details: Standard Export package By Wooden case
Delivery Time: 3days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per week
Detailed Product Description
Voltage: 380v Power: 1500W
Warranty: 12 Months Dimension: 1350*800*1510mm
Output: 800-3000KG/H Material: 304 Stainless Steel
High Light:

4x4mm Fruit Processing Equipment

,

1500W Fruit Processing Equipment

,

Carrot Grater Machine

Automatic Potato Shredder Machine Carrot Grater Slicer Cutter Machine With Big Capacity





The large-scale grater TJ-400T is a two-dimensional cutting machine, suitable for slicing, cutting (shredded), or cutting vegetables. It is suitable for cutting various root vegetables, fruits, meats and cheeses. For example, potatoes, carrots, lettuce, bamboo shoots, onions, tomatoes, almonds, mushrooms, radishes, garlic, etc., are suitable for cutting products of various specifications. The maximum diameter of the products to be cut is 90mm.

Machine characteristics
1. Two-dimensional centrifugal cutting machine: made of all stainless steel, heavy frame structure, sandblasted surface treatment
2. Concise design, no exposed nuts, sleek surface design, easy to clean
3. The drive area and the cutting area are completely separated, with high sanitary standards and convenient maintenance
4. Rotating feeding port, equipped with a safety switch, can be connected to a feeding machine
5. The circular discharge port can be adapted to the receiving box or discharge conveyor according to customer requirements
6. Equipped with stainless steel movable casters
7. The cutting tool imported from Germany is very sharp, no need to sharpen the knife, and the replacement cost is low.

Technical parameter

Erasable wire: 2.4x2.4mm square wire,
3.2x3.2mm V-shaped wire
Can be cut: 4x4mm/5x5mm/6x6mm/7x7mm/8x8mm/9x9mm/10x10mm
Can be sliced: 1-5mm flat sheet and corrugated sheet, steplessly adjustable
Power supply: 400 V, 50 Hz, 3 phase Power: 1.5 kW motor,
equipped with Omron frequency conversion speed regulation,
suitable for various products Motor button start, with feed port indicator light and speed control knob Dimensions: length 1350mm × width 800mm × height 1510mm Weight: 350Kg
4x4mm Fruit Processing Equipment Carrot Grater Machine 0





4x4mm Fruit Processing Equipment Carrot Grater Machine 1




FAQ



1. Q: How is The Quality Of The Products?
A: With the goal of becoming the leading brand in this filed, we keep exploring in research,quality development for the past 15 years. We are confident to satisfy you with our guaranteed quality.
2. Q: How to Operate And Install The Machinery?
A: Manuals will be provided together with machinery;and we usually assemble the machinery and test it before shipment.
3.Q: What is The Solution For Faults During The Use Of The Machinery?
A: You shall send us the details of the machinery and the failure statements with a photo or a video if necessary,Then we will offer you the professional instructions and suggestions until the machinery works normally.
4. Q: What Details Are Important Before Ordering The Processing Line?
A: The processing materials, capacity requirements,ichnography of your plant,and also your kind customized requirements shall be provided to us before making accurate plans for you.

5. Q: What Kind Of Payment Terms Are Available?
A: T/T, L/C,WESTERN UNION are acceptable.
