5.5KW Frozen Meat Processing Machine Block Cube Dicer

China Guangzhou Jiuying Food Machinery Co.,Ltd certification
China Guangzhou Jiuying Food Machinery Co.,Ltd certification
I'm Online Chat Now

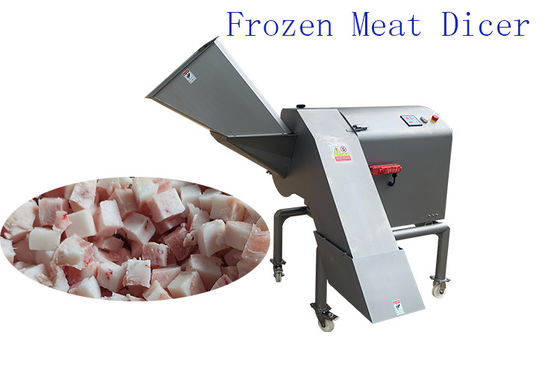

5.5KW Frozen Meat Processing Machine Block Cube Dicer

5.5KW Frozen Meat Processing Machine Block Cube Dicer
5.5KW Frozen Meat Processing Machine Block Cube Dicer 5.5KW Frozen Meat Processing Machine Block Cube Dicer 5.5KW Frozen Meat Processing Machine Block Cube Dicer

Large Image :  5.5KW Frozen Meat Processing Machine Block Cube Dicer

Product Details:
Place of Origin: Guangzhou,China
Brand Name: Jiu Ying
Certification: CE
Model Number: TJ-1500T
Payment & Shipping Terms:
Minimum Order Quantity: one set
Packaging Details: Standard Export package By Wooden case
Delivery Time: 3days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per week
Detailed Product Description
Voltage: 380v Power: 5.5KW
Warranty: 12 Months Dimension: 1750*1250*1600mm
Output: 800-3000KG/H Material: 304 Stainless Steel
High Light:

1310mm Meat Processing Machine

,

5.5KW Meat Processing Machine

,

Meat Block Cube Dicer

Automatic Factory Supply Frozen Meat Block Dicer Machine/Diced Meat Cube Cutter





This machine is suitable for cutting frozen meat, beef, chicken (without bone) and other same types of frozen meat at minus 5 degrees to minus 10 degrees, and can cut 5-25mm cubes.

Technical parameter

Model: TJ-1500T
Total power: 5.95kw
Machine size: 1750*1250*1600mm
Machine weight: 400kg
Voltage: 220/380V
Feeding height: 1310mm
Discharge height: 385mm
Cutting size: 5/8/10/12/15/20/25mm
Processing capacity: 800-3000kg/h
5.5KW Frozen Meat Processing Machine Block Cube Dicer 0
Features
1. The parts are easy to disassemble and can be washed with water
2. Simple operation, low failure rate, can reduce labor costs
3. The setting of movable wheels facilitates the operator to move the machine to different operating positions
4. Touch control panel, motor speed can be set according to different products and customer needs

The configuration is as follows

Motor: AEVF 2.2KW Taiwan Adeli
Security electronic door lock: 440G-MT47037 Allen-Bradley, USA
Inverter: MS300 5HP, 460V, 3-phase
Delta Security module: SRB301LC
Germany SCHMERSAL
Switching power supply: P0120003B Italy GIOVENZANA
Switch button: M22DP-SF11GR Taiwan Maoren
Stop button: YWB1-V4E01R Izumi IDEC,
Japan Knives: Imported from Astor, Germany
Body plate: SUS 304
FAQ



1. Q: How is The Quality Of The Products?
A: With the goal of becoming the leading brand in this filed, we keep exploring in research,quality development for the past 15 years. We are confident to satisfy you with our guaranteed quality.
2. Q: How to Operate And Install The Machinery?
A: Manuals will be provided together with machinery;and we usually assemble the machinery and test it before shipment.
3.Q: What is The Solution For Faults During The Use Of The Machinery?
A: You shall send us the details of the machinery and the failure statements with a photo or a video if necessary,Then we will offer you the professional instructions and suggestions until the machinery works normally.
4. Q: What Details Are Important Before Ordering The Processing Line?
A: The processing materials, capacity requirements,ichnography of your plant,and also your kind customized requirements shall be provided to us before making accurate plans for you.

5. Q: What Kind Of Payment Terms Are Available?
A: T/T, L/C,WESTERN UNION are acceptable.
