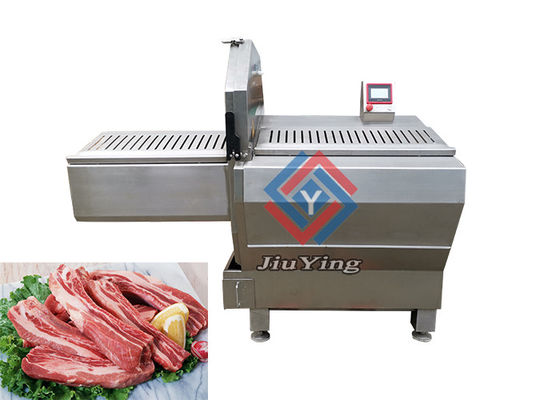

SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer

China Guangzhou Jiuying Food Machinery Co.,Ltd certification
China Guangzhou Jiuying Food Machinery Co.,Ltd certification
I'm Online Chat Now

SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer

SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer
SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer

Large Image :  SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer

Product Details:
Place of Origin: Guangzhou,China
Brand Name: JiuYing
Certification: CE
Model Number: JY-36K
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard Export package By Wooden case
Delivery Time: 3~15 days after receive the payment
Payment Terms: T/T, Western Union
Supply Ability: 10 unit per week
Detailed Product Description
Item Name: Meat Slicing Machine Unit Size: 1980*1150*1650mm
Cutting Size: 1~30mm Adjustable Capacity: 200pcs/min
Power: 5.5KW Color: 304 Stainless Steel
Suitable Cutting Tempreture: Around -4 Degree Voltage: 380V Three Phase
High Light:

30mm Industrial Meat Slicer


SUS 304 Industrial Meat Slicer

Oversize Meat Processing Machine For Slicer With SUS 304 Good Quality


meat slicing machine mainly cuts frozen meat, fish, cheese, bacon, sausage and other raw materials into pieces of meat required by users, and replaces serrated cutters (rotary knives, smooth-edged knives, toothed single or double knives Etc.)

It is also a high-efficiency and high-precision meat slicing machine that can be used to cut frozen meat with bone into pieces or segments Wait.


* Multiple slices with Horizontal cutting.

* Suitable for fresh chicken, pork, beef, lamb and poultry.

* Also capable of butterflying.



1. The whole body is made of SUS304 stainless steel. It adopts silver-white frosted spraying method to reduce corrosion and increase appearance. The internal sealing of the equipment is non-toxic and harmless, and meets the food-grade hygiene requirements.

2. Safe and reliable protection performance: The equipment is equipped with three layers of protection (large knife lock, cutting chamber door and material door induction switch), the equipment corners are passivated, and there is no sharp edge leakage.
3. Control the advancement distance of the propulsion device through the display screen to adjust the thickness of the cutting material.
4. The meat slices are non-sticky and uniform in thickness; the machine is equipped with flat cutters or serrated cutters, which can cut meat with bones.
5. Pusher device memory function: When the slicer completes a cut, it automatically returns to the position set before feeding, thereby reducing the feeding time.

SUS 304 Horizontal Cutting 30mm Industrial Meat Slicer 0




  • Imported Germany ASTOR blade, NORD Motor.
  • ALL Stainless steel 304
  • Good performance on cutting the beef with bone, pork chop, baconic ham, sausage and cheese.
  • Perfect cutting for frozen meat with zero degree
  • The parts of contact food meet the international food health standard.
  • Easy operation & cleaning, nice appearance and durable.
  • Save labor, water and electricity
  • With the excellent portioning cutting function;
  • It adopts gentle circular blade technology;
  •  Precision screw holding device to control the raw material with tolerance 0.01 mm;
  • Human Machine Interface is adopted to set slicing parameters;
  • Servo motor, reducer and blades are connected in direct combination mode to ensure the precision and high efficiency;
  • Safety is guaranteed by emergency power off system when open the blades cover, discharging channel, and feeding hopper.


Model JY-36K
Dimension 1980*1150*1650mm
Packing Size 2100*1350*1800mm
Cutting Size 1~30mm (Adjustable)
Capacity 200pcs/min
Power 5.5KW
Qty of Blade 1pcs Made In Germany ASTOR Brand
Qty of Motor 1pcs Made In Germany NORD Brand



Hearty Service

  • Before sending the machine, we will test and adjust, so you can use directly when you get it.
  • Operating video & instruction will be sent to clients, to help them better use the machines.
  • Any problems occur while using, professional advice will be given by us.
  • All kinds of frequently used parts are supplied from us all the year round.



Answer to clients’ questions


---We have 10-year-experience in providing and developing automatic machinery of food and beverage industry.

With high quality, excellent service, we walk at the forefront of the industry.


2.How about your product quality?

--Since we are professional manufacture in this field, high quality is our determination.


3.How to install and operate the machine?

--Normally we don’t disassemble the machine when packing, and we will text and adjust the machine before delivery, so customers can use it directly.


4.What kind of packing box?

--First we strap the machine with waterproof plastic film, and then pack it in a standard exporting plywood case box.

Which insure better protection while transporting.


5. Transportation

--For light and small cargo, Express is the preferred. For heavy and large cargo, Shipping is better.


6. How should I do if we meet some trouble while operating?

--Don’t worry about that, our professional solution and video will send to you immediately. And we can provide door-to-door service is necessary.
