Customizable 3.7KW 700KG/H Pork Diced Mutton Machine

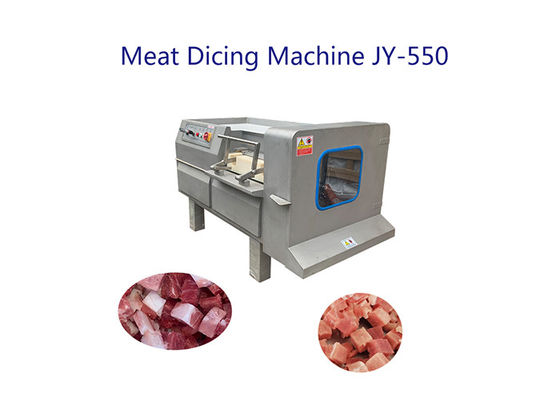

Diced meat machine JY-550 use:

Diced meat machine JY-550 This diced machine has a compact structure and an optimized hygienic design. The casing and cutting knife grid are all made of stainless steel. The cutting knife adopts double-edged cutting, which has high work efficiency. The size of the cut meat is 5mm smaller. , 30mm. It is a standing equipment in food processing.

Main features of Diced Meat JY-550:

Adjusting the thickness cutting knob, the push rod can be steplessly adjusted to meet the requirements of different cutting thickness. The pre-pressure design is adopted to ensure that the diced meat is uniform in the cutting process. When single-edged cutting, the meat push rod makes a step movement to ensure the correct cutting size.

Main technical parameters of JY-550 dicing machine:

Production capacity: 700-900kg/h

Cutting groove size: 120×120×550mm

Power: 3.7KW

Cutting grid size: 5,6,7,8,9,11,13,16,20,27 Other sizes can be provided upon request

Dimensions: 1940×980×1100

Weight: 700KG

After-sales service:

1. From the date of purchase, under normal use conditions, if it is found that there is a manufacturing quality problem within one year, the manufacturer will provide free repair or replacement of parts.

2. If the parts or the whole machine are damaged due to improper operation, overload, collision, foreign matter, etc., the factory provides services and all costs are borne by the user.

3. Standard parts such as bearings, bolts, belts and blades are not included in the three packages.

4. The motor is guaranteed for one year free of charge. If you have difficulty in repairing it yourself, you can mail the whole machine back to our company. You will get free repairs. (Due to improper operation by the user and the motor is damaged, the corresponding fee will be charged)

5. After the warranty period is exceeded, if the machine is damaged, the mail repair service will still be provided, but the cost will be charged for individual parts.
