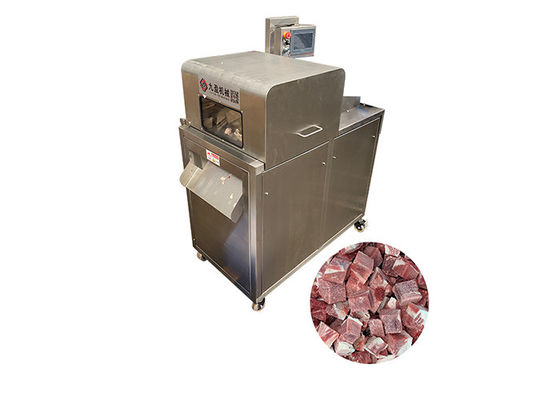

3KW Frozen Chicken Cutter With Bone Cube Dicing Machine

PLC Control Frozen Chicken Cutter Meat With Bone Cube Dicing Machine

The automatic frozen meat and chicken cutting machine is a new type of cutting equipment in the catering and kitchen equipment market. It breaks the disadvantages of using rotary knives to cut meat, bones, and vibrations, and overcomes the limitation of width and height.

A new structure with multiple sets of upper compression feeding belts adaptively compressing and conveying materials is adopted, which solves the problem of regular appearance requirements for materials fed in. This machine can automatically adjust the height of the pressing wheel according to the irregular height of the material. Cut into pieces at one time.

This machine adopts frequency conversion speed regulation, PLC control, and the interactive interface adopts a 7-inch touch screen (can be rotated 90°), which can realize stepless speed change and freely adjust the cutting speed and feeding length.

Technical parameter:

Dimensions: L 1200mm х B 600mm х H 1400mm

Main motor power: 3 Kw

Power transmission and transmission machine power: 0.75 Kw

Running speed: 35 knives—82 knives/min

Feeding port size: 300mmх65mm (passing widthхpassing height)

Machine weight: 372Kg

Optional tool: 9 slots 31.6mm

10 slots 28.5mm

11 slots 25mm

12 slots 23.1mm

13 slots 21.2mm

14 slots 20mm
