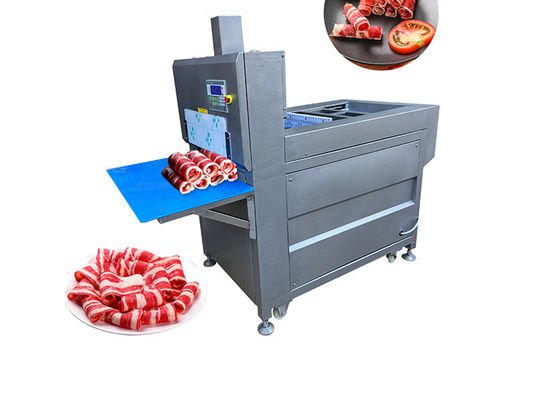

Functional Frozen Meat Slicing Cutter Lamb Roll Slices Machinery
Advantages of the slicer:
a) High degree of automation. There is no need to stop the machine to adjust the thickness, one-key operation of forward and backward, and automatic backward function. In a real sense, the CNC one-key operation is realized.
b) High cutting efficiency. The slicing speed of the numerically controlled slicing machine is 50 times/minute, and the slicing speed of the mechanical slicing machine is 36 times/minute, which is 30% higher than the efficiency of the mechanical slicing machine.
c) The whole machine is made of food grade 304 stainless steel, and the pusher adopts double guide feed. The machine runs more stable and the slice thickness is consistent.
d) The height of the knife is larger, which is suitable for cutting beef and mutton rolls (plates) of various heights.
Input power supply: Three-phase AC380V+N (or single-phase AC220V) -15～＋10﹪ 50HＺ
a) Temperature: -5°C∼35°C Storage: -20°C∼35°C
b) Humidity: less than 80% (no condensation)
c) Vibration: less than 0.5g (4.9m/s), 10∼60HZ (non-continuous operation)
d) Non-corrosive, explosive and flammable, conductive gas, liquid, and dust
Dimensions: Two rolls: 1300mm×500mm×1260mm
Four rolls: 1300mm×760mm×1260mm
Eight rolls: 1800mm×1200mm×1300mm
Processing range: meat roll temperature (winter) -8-10℃ (summer) -12-15℃ is the best)
Two rolls: length 600mm, diameter 80-125mm (or height≤170mm)
Four rolls: length 600mm, diameter 80-125mm (or height≤170mm)
Eight rolls: length 800mm, diameter 80-125mm (or height≤170mm)
Weight: Two rolls: 350kg Four rolls: 500kg Eight rolls: 800kg
1. From the date of purchase, under normal use conditions, if it is found that there is a manufacturing quality problem within one year, the manufacturer will provide free repair or replacement of parts.
2. If the parts or the whole machine are damaged due to improper operation, overload, collision, foreign matter, etc., the factory provides services and all costs are borne by the user.
3. Standard parts such as bearings, bolts, belts and blades are not included in the three packages.
4. The motor has one year free warranty. If you have difficulty in repairing it yourself, you can mail the whole machine back to our company. You will get free repairs. (Due to improper operation by the user and the motor is damaged, the corresponding fee will be charged)
5. After the warranty period is exceeded, if the machine is damaged, the mail repair service will still be provided, but the cost will be charged for individual parts.
