500kg/h Automatic Beef Meat Ribs Dicing Machine

500kg/h Automatic Beef Meat Ribs Dicing Machine

MOQ: one set
Price: Negotiable
Standard Packaging: Standard Export package By Wooden case
Delivery Period: 3days
Payment Method: L/C, T/T
Supply Capacity: 10 sets per week
Detail Information
Place of Origin
Guangzhou,China
Brand Name
Jiu Ying
Certification
CE
Model Number
JY-300D
Regular Voltage:
380v Customizable
Power:
3 KW
Warranty:
12 Months
Dimension:
1200*600*1400mm
Output:
800-1000KG/H
Material:
304 Stainless Steel
Highlight:

Ribs Dicing Machine

,

500kg/h Ribs Dicing Machine

,

3KW Meat Processing Machine

Product Description
                   500-800kg/h Automatic Beef Meat Cutting Ribs Dicing Machine


As a new type of cutting equipment in the catering and kitchen equipment market, the automatic cutting machine breaks the disadvantages of using rotary knives to cut meat, bones, and large vibrations, overcomes the limitation of width and height, and adopts multiple groups. The new structure of the upper compression feeding belt self-adaptively compresses the conveying material, which solves the problem of the regular appearance of the material being fed. This machine can automatically adjust the height of the pressing wheel in time according to the irregular height of the material, and realize the cutting and forming at one time.

This machine adopts frequency conversion speed regulation, PLC control, and the interactive interface adopts a 7-inch touch screen (rotatable 90°), which can realize stepless speed change and freely adjust the cutting speed and feeding length.

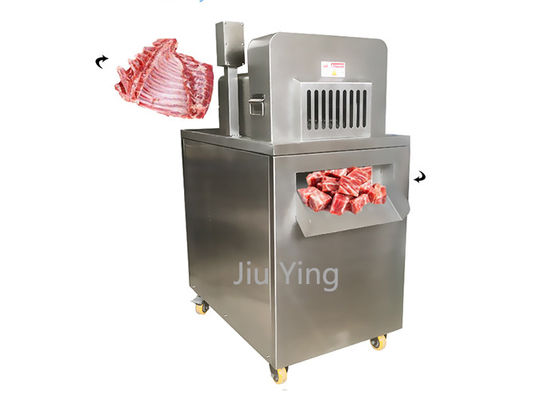

500kg/h Automatic Beef Meat Ribs Dicing Machine 0

Technical Parameters:

Dimensions: L 1200mm х B 600mm х H 1400mm

Main motor power: 3 Kw

Power transmission and transmission machine power: 0.75 Kw

Running speed: 35 knives—82 knives/min

Inlet size: 300mmх65mm (passing widthхpassing height)

Machine weight: 372Kg

Optional tool: 9 slots 31.6mm

10 slots 28.5mm

11 slots 25mm

12 slots 23.1mm

13 slots 21.2mm

14 slots 20mm

500kg/h Automatic Beef Meat Ribs Dicing Machine 1

After-sales service
1. From the date of purchase, under normal use conditions, if it is found that there is a manufacturing quality problem within one year, the manufacturer will provide free repair or replacement of parts.
2. If the parts or the whole machine are damaged due to improper operation, overload, collision, foreign matter, etc., the factory provides services and all costs are borne by the user.
3. Standard parts such as bearings, bolts, belts and blades are not included in the three packages.
4. The motor has one year free warranty. If you have difficulty in repairing it yourself, you can mail the whole machine back to our company. You will get free repairs. (Due to improper operation by the user and the motor is damaged, the corresponding fee will be charged)
5. After the warranty period is exceeded, if the machine is damaged, the mail repair service will still be provided, but the cost will be charged for individual parts.
