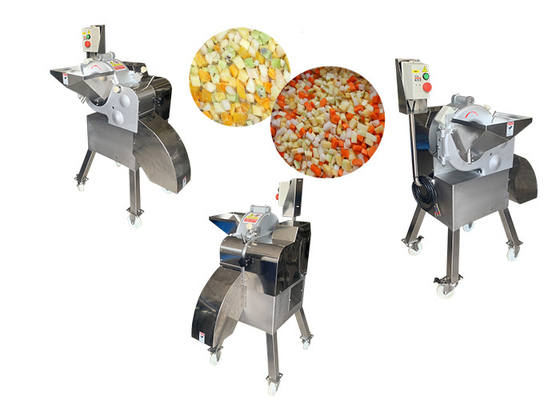

900KG/H 3 - 25mm Carrot Veg Dicer Machine Fruit Mango Cutting Equipment

3-20mm Carrot Vegetables Dicer Machine Fruit Mango Dicing Factory Supply

Model: Vegetables Dicer Machine TJ-800


Introduction

High-speed fruit vegetable dice machine can be a ball of vegetable , such as radish, turnips ,potatoes, taro, sweet potatoes, cucumbers, onions, peppers and so on, also for soft and juicy fruits, such as mango, pineapple, papaya, apples, strawberries, bamboo shoots, ham and so on, fast dice or cut strips, thickness size adjustable, the inlet has micro switch, Operation Safety, Dice speed, a machine quite dozens of people of the workload, large output, simple operation, easy to clean.

This High-speed fruit vegetable dice machine is suitable for large jam processing plants, beverage processing plants, food processing industry and catering industry.

working principle

High-speed fruit vegetable dice machine is driven by the cutting object high-speed rotation, the use of the object centrifugal force, with the help of the cutting object cut into pieces, and then through the disc cutting knife cut into strips, and will be cut into the cross-cut cutting edge, cut by cutting the knife into the required cube or cuboid, cut specifications can be customized.

Cube Specifications: 3, 4, 5, 6, 8, 10, 12, 15, 18, 20, 25mm (optional)

feature

1. The High-speed fruit vegetable dice machine uses composite tools, one-time molding, switch rules, smooth surface, high forming rate.
2. machine has advanced design, convenient operation, low energy consumption, high efficiency, magnesium alloy and stainless steel materials, anti-corrosion, aesthetics, in line with hygienic standards.
3. long-term work does not rust, no poison.
4. machine frame, Shell, Hopper and the main parts are made of magnesium aluminum alloy and stainless steel.
5. Thickened stainless steel plate, the machine appearance design is reasonable, beautiful, conforms to the Food processing Enterprise Health request. 6. Using standard copper core motor, waterproof switch, oxygen-free copper core cable, the machine is safer to use

Technical Parameter:

Capacity:500-800KG/H
Dimension: 760x1000x1280mm
Cutting size:3-25mm(not adjustable)
Power:2HP
Net weight: 100KG
Voltage: 380V
