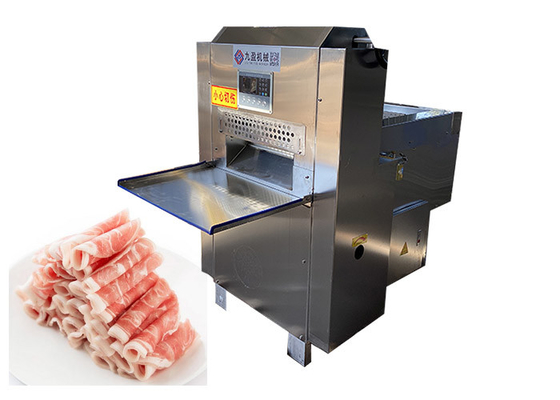

SUS 304 Industrial 2 Roller Meat Slicer Machine 300KG/H

Hot Sale 2 Roller Meat Slicer Cutting Machine Industrial Commercial Electric Slice

Industrial Frozen Meat Slicing Machine Beef Mutton Rolls Slicer

The frozen meat slicer can cut 2 rolls, 4 rolls, 6 rolls, and 8 rolls of meat at the same time, which is suitable for large, medium and small meat processing enterprises. This product adopts electric pusher, electric pressure, electric adjustment of thickness, step-by-step push, the cutting knife automatically stops when the meat is processed, the pusher automatically retracts, automatically stops, the cutting knife opens, the conveyor belt automatically runs synchronously, and the protective door opens The whole machine automatically cuts off the power and has a high degree of automation. The meat slices are cut, the thickness is adjusted, the meat rolls are conveyed, and the automatic shutdown can be completed with one button, saving labor and time.

The meat slicer can cut 2-8 rolls of mutton or fat at a time, completely solving the problem of high failure rate of the mechanical slicer, and realizing full automation in the true sense. Infrared sensor safety protection device. The thickness can be adjusted without stopping the machine. It can be automatically added or subtracted by the switch according to the required thickness. It can cut 100-200 kg per hour. The worktable is made of food-specific organic plastic plates to ensure food safety and hygiene. It is a large hot pot restaurant, large and medium-sized Special equipment for beef and mutton wholesalers.

Compared with the previous mechanical slicer, the slicer has the following advantages:

a) High degree of automation. There is no need to stop when adjusting the thickness, one-button operation for advance and retreat, and automatic retreat function. Really realized the one-key operation of CNC.
b) High cutting efficiency. The slicing speed of the CNC slicer is 50 times/min, and the slicing speed of the mechanical slicer is 36 times/min, which is 30% more efficient than the mechanical slicer.
c) The machine is made of food-grade 304 stainless steel, and the feeder uses dual-guided feed. The operation of the machine is more stable and the slice thickness is consistent.
d) The starting height is larger, suitable for cutting rolls (boards) of various heights.

Dimension: 1450*450*1350mm
Voltage: 220/380V
Power: 3.7KW
Speed of Blade: 45-60/min
Capacity: 50-300KG/H
Cutting Size: 0.1-150mm
Qty:2 roll
Max. Length: 600mm
Max. Height: 200mm
Mx. Width: 280mm
Weight: 150KG


Notice:

1. Our company's slicer 16 rolls, 8 rolls, 4 rolls, 2 rolls, automatic flat cuts, 2 rolls, 1 roll are available for sale, double layer overlay cutting, touch screen operation, PLC control, servo motor drive, double screw horizontally Material, cutting height up to 20 cm, fully automatic operation,
2. Suitable for large, medium and small meat processing enterprises. This product adopts electric pusher, electric presser, electric adjustment thickness, stepping pusher, meat processing, cutter automatically stops, pusher plate automatically retreats, automatic stop, cutter open conveyor automatic synchronous operation, protective door open The whole machine is automatically powered off, the degree of automation is high, the meat slice is cut, the thickness is adjusted, the meat roll is delivered, and the meat is automatically stopped. It can be completed with one button, saving labor and time.

a) The installation environment of the slicer should prevent contact with corrosive, flammable gases, conductive objects, metal dust, oil mist and liquids into the machine, especially pay attention to the protection of electrical appliances inside the distribution box;
b) Temperature and humidity: Ambient temperature -5ºC~30ºC, long-term working temperature below 30℃, relative humidity below 80%, and ensure good heat dissipation conditions.
c) The slicer installation should avoid impact and vibration. It should be placed on a flat surface with suitable hardness. The customer is strongly requested to adjust the slicer to the optimal level of the machine.
