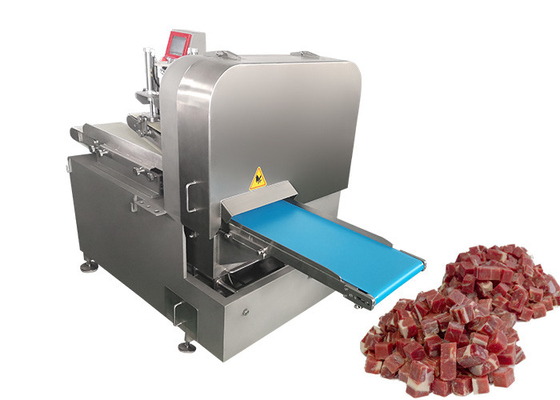

Precisely Meat Processing Machine 2 Dimension Frozen Beef Cutting Machine

Introduction:

1. The upper and lower conveyor belts are used for feeding, which is convenient for operation. The cutting products are sent out by the conveyor belt, which can be matched with the workshop production line.

2. The touch screen is used to digitally set the cutting size, PLC program control, and the cutting product standard is accurate, which can meet the cutting specifications of customers.

3. It can quickly disassemble the feeding and discharging conveyor belt and the disc cutter group, which is convenient for cleaning and meets the requirements of food hygiene.

4. The double-knife cutting speed and the cutting speed of the disc cutter group are set by the PLC program. The specification of the cutting product is completed by the disc cutter group. The specific specification is selected by the user, and the cutting product is stable and stable.

5. The machine adopts safety protection device to prevent personal injury.

6. The whole machine is made of stainless steel and can be washed with water, which meets the requirements of food hygiene.

Functional Features:

1. The parts are easy to disassemble and can be cleaned with water;

2. Simple operation, low failure rate and reduced labor cost;

3. The setting of movable wheels facilitates the operator to move the machine to different operating positions;

4. Touch control operation panel, motor speed can be set according to different products and customer requirements.

Application:

Suitable for those fresh or frozen meat processing factory, supermarket, central kitchen, chain restaurant, ect

Technical parameter:

• Feed port size: 300mm*70mm
• Power: 2.25kw
• Dimensions: 2300mm*1100mm*1500mm
• Production capacity: 800kg/h
• Cutting size: 5mm-30mm option
• Cutting temperature: 0-5 degrees
• Weight: 500kg
• Material: SUS 304 stainless steel
