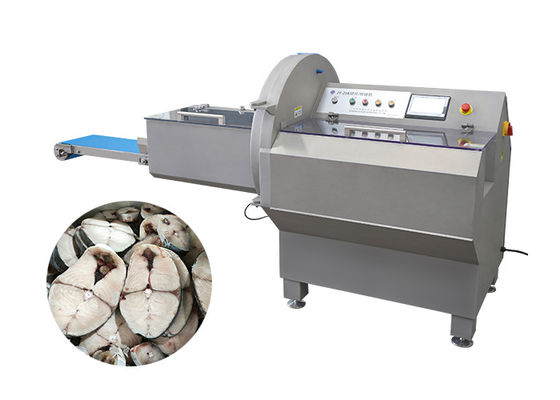

Commercial Automatic Fish Slicer Cutting Turkey Equipment 100kg/h

Commercial automatic fish slicer cutting turkey equipment

Application scope of chopping machine: JY-25K chopping machine/slicer is suitable for cutting fresh or deeply frozen (-4C °) fresh meat, fat cattle, bacon, ham, ribs, cheese, and frozen food into slices. The cutting thickness is set digitally, with accurate thickness and dividing function that can meet the requirements of small packaging for users.

Technical parameters:

Slice thickness: 1-32mm set by digitization

Splitting function: The number of pieces per piece is set digitally

Minimum temperature of raw materials: -4 ℃

Power supply: 4.84kw

Equipment voltage: 380V 50HZ

Cutting speed: about 280 pieces/minute

Cutting thickness: 1-32mm (adjustable)

Feed size: 700 * 250 * 180mm (length, width, height)

External dimensions: 2580 × nine hundred and fifty × 1480mm

Weight: 600kg

Features:

1. The body is entirely welded from stainless steel material.

2. Important components such as cutter motor, reducer, servo motor, and cutter are all imported parts.

3. The specialized cutting knife produced in Germany is sharp and has a good cutting effect. It is equipped with a specialized German imported knife for cutting pork ribs.

4. Digitally set slice thickness, precise, and easy to operate.

5. The cutting blade is directly driven by an electric motor through a reducer, with high efficiency and reliable cutting effect.

6. Splitting function, the number of pieces per set is digitized and can be used for small packaging.

7. Reliable safety measures.

Main configuration:

Cutting tools: BE cutting tools imported from Germany

Gearbox: Nord, Germany

Main motor: Nord, Germany

Transmission: Ball screw Taiwan TBI

Institutional bearings: Japanese NSK

Relay: Schneider, Germany

Switching power supply: Taiwan Mingwei

Servo controller: Mitsubishi, Japan

Servo motor: Mitsubishi, Japan

Touch screen: Huichuan

PLC controller: Huichuan
