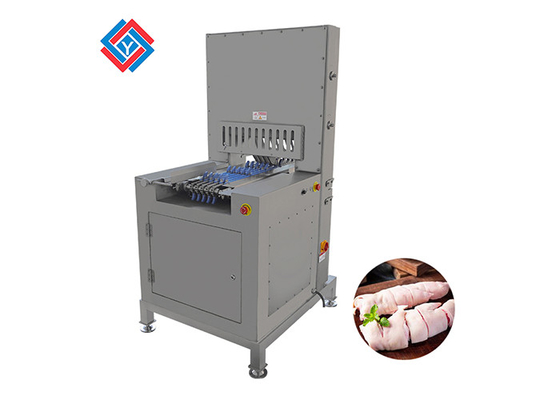

Multifunctional Meat Five Section Bone Sawing Machine / Pork Feet Cutting Machine

Multifunctional meat five-section bone sawing machine/ pork feet cutting machine with bone cutting machine

Dimensions Length 1020X Width 820X Height 1800mm
Table size 300mm wide
Maximum cutting height 160mm
Dimensional accuracy 1.5mm
Segment width 30-60mm (customized)
Saw blade line speed 20m/s
Voltage 380V
Power 3.5kw
Saw blade length 1920mmX2; 3380mmX2
Body weight 370kg

1 Heavy-duty frame structure design, the whole machine is made of stainless steel, and the surface is sandblasted

24 independent drive motors, 4 independent saw blade automatic tensioning systems

3 independent drive feeding conveyor belt, adjustable speed

4 Optional conveyor belt scraper shapes to suit different products

5 Equipped with protective door and feed zone safety switch to ensure cutting safety

6 The control system adopts 24VDC safety voltage

7 Metal start switch with two-color indicator light to indicate different machine status

8 Optional PLC control system

9 Optional motor braking system, when the stop switch is pressed, the upper or lower door is opened, and the saw blade is disconnected, the machine can stop within 0.5s

10 Using Italian Lame saw blade, sharp and durable, the saw edge is clear and neat

Company Profile

1. Q: How is The Quality Of The Products?
A: With the goal of becoming the leading brand in this filed, we keep exploring in research,quality development for the past 15 years. We are confident to satisfy you with our guaranteed quality.
2. Q: How to Operate And Install The Machinery?
A: Manuals will be provided together with machinery;and we usually assemble the machinery and test it before shipment.
3.Q: What is The Solution For Faults During The Use Of The Machinery?
A: You shall send us the details of the machinery and the failure statements with a photo or a video if necessary,Then we will offer you the professional instructions and suggestions until the machinery works normally.
4. Q: What Details Are Important Before Ordering The Processing Line?
A: The processing materials, capacity requirements,ichnography of your plant,and also your kind customized requirements shall be provided to us before making accurate plans for you.

5. Q: What Kind Of Payment Terms Are Available?
A: T/T, L/C,WESTERN UNION are acceptable.
